Sewer Line Repair in Windsor Hills, CA
Failing cast iron pipe under the foundation, clay pipe across the front yard, and a sewer that needed a three-method solution. Team Rooter replaced the under-slab cast iron, trenched and replaced 35 feet of clay with ABS, installed a cleanout, and lined the remaining clay to the street — all warranted.
Windsor Hills, CA — Sewer Line Repair Gallery
A Sewer That Needed Three Different Solutions
This Windsor Hills home had deteriorating pipe in three distinct segments — and each required a different approach. The cast iron main underneath the foundation was leaking into the soil. The clay pipe across the front yard had insufficient slope for a pipe burst. The section running toward the street was still in acceptable condition but needed to be sealed.
Our technicians first cut a 3×3 access hole outside the front of the home to reach the cast iron inside the foundation and replaced 15 feet with new ABS. We then trenched 35 feet of front-yard clay, installed new ABS pipe with a cleanout at the home, and finally ran a CIPP liner from that point toward the street. One visit, three methods, one fully warranted sewer restoration.
How We Got the Job Done

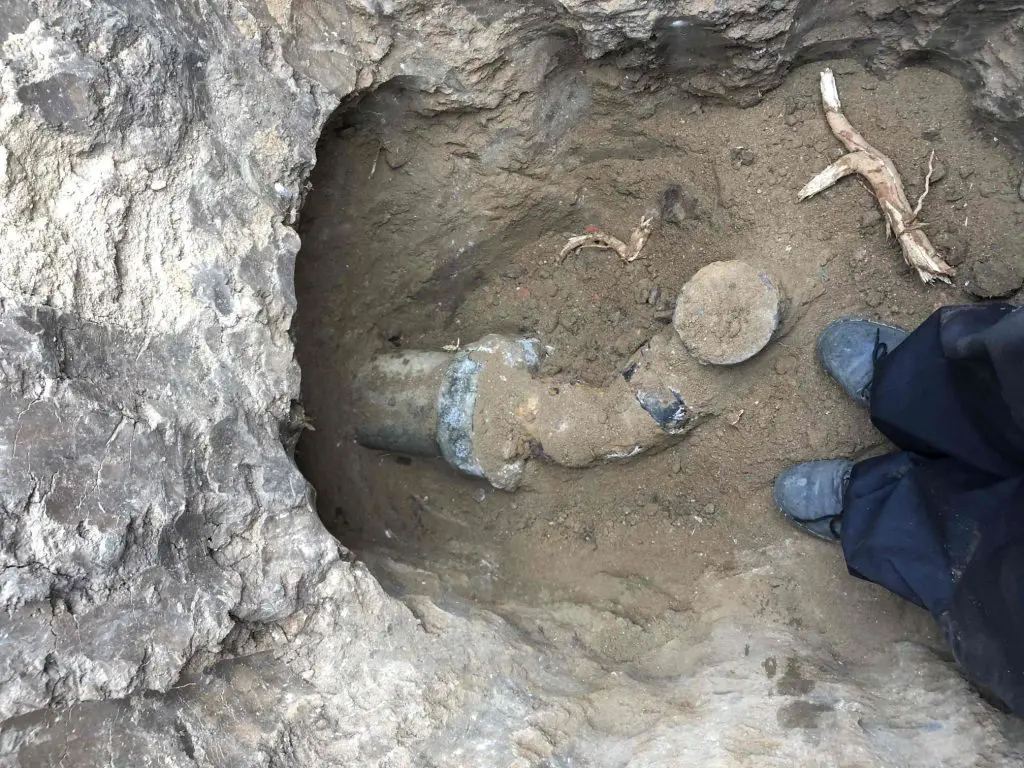

Cut access outside the foundation to reach the cast iron main

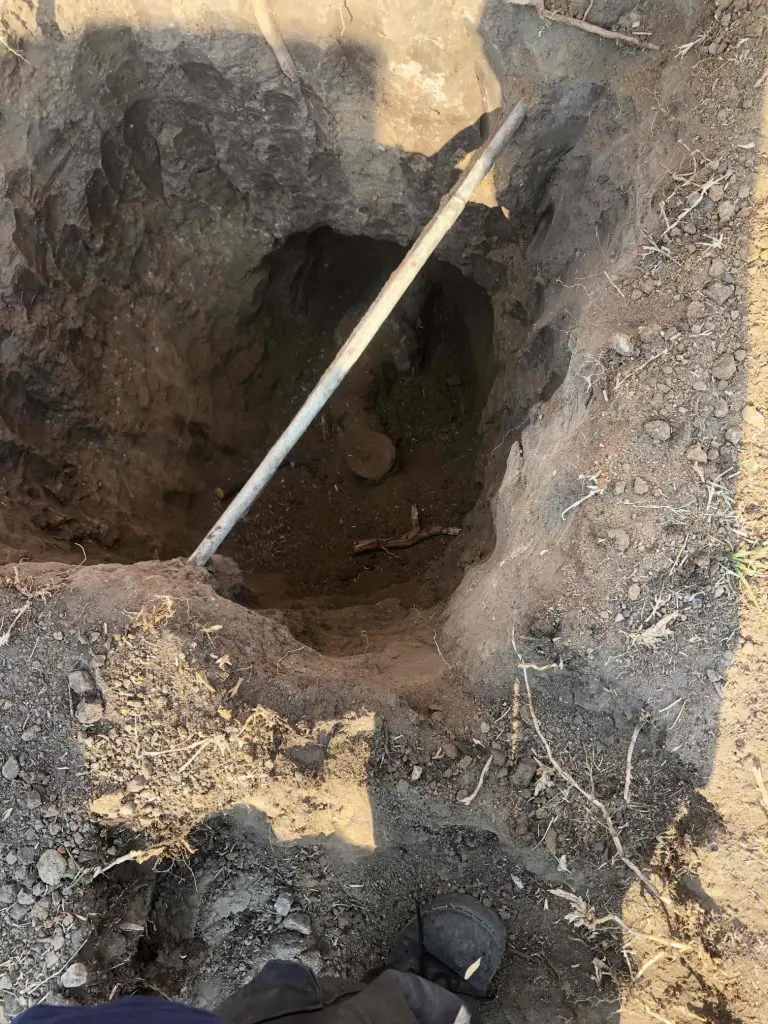

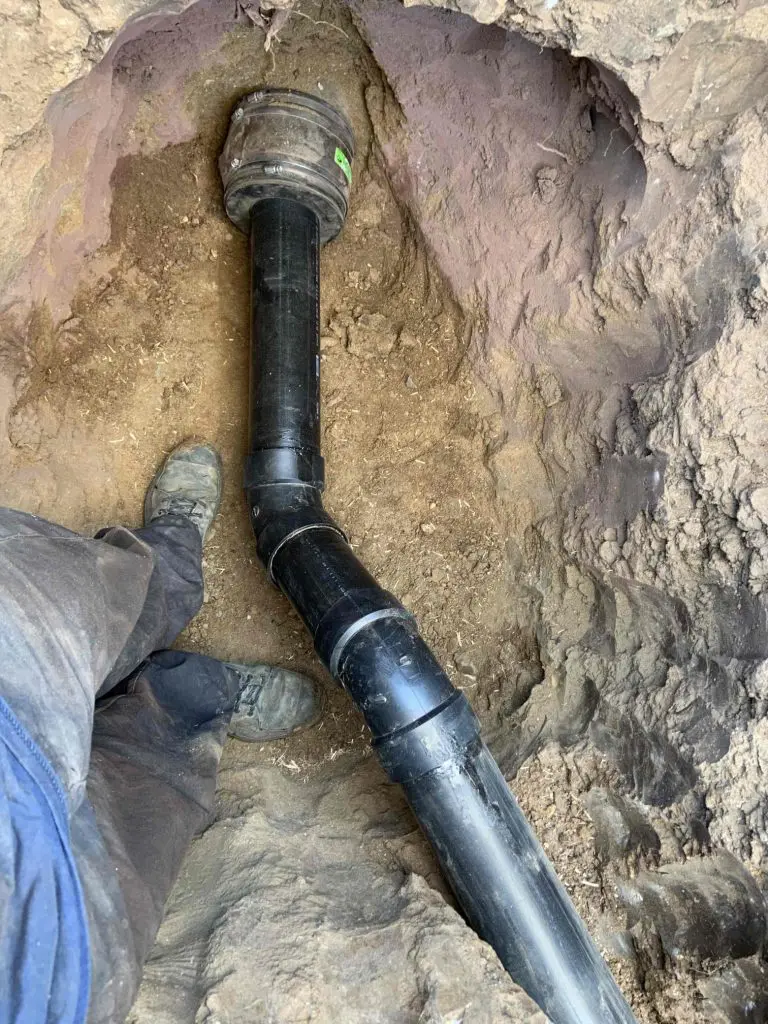

We opened a 3×3 hole in the soil outside the front of the home to access the cast iron pipe running inside the foundation. The failing 15-foot section was cut out and replaced with new ABS pipe, properly sloped and connected.
Run a camera to confirm pipe condition across all three segments
Before determining method, we camera-inspected the full run — under-slab, front yard, and street connection — to confirm pipe condition, slope, and the correct repair approach for each segment. The camera footage drove every decision from this point forward.

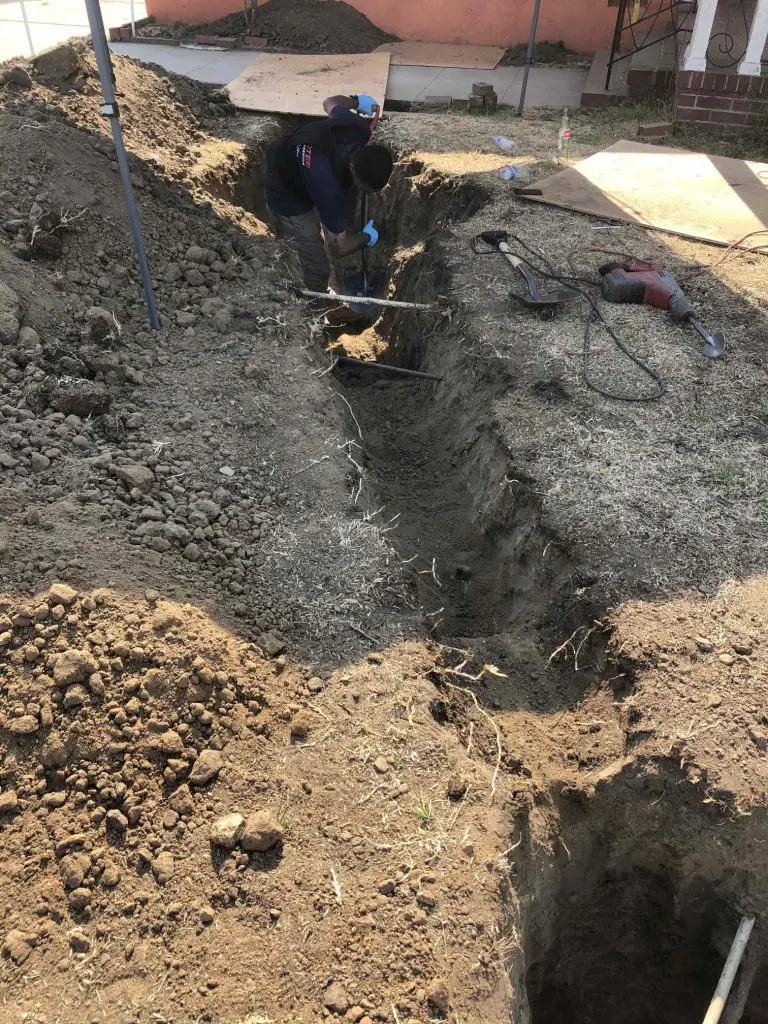

Trench 35 feet of clay — pipe burst wasn't an option here

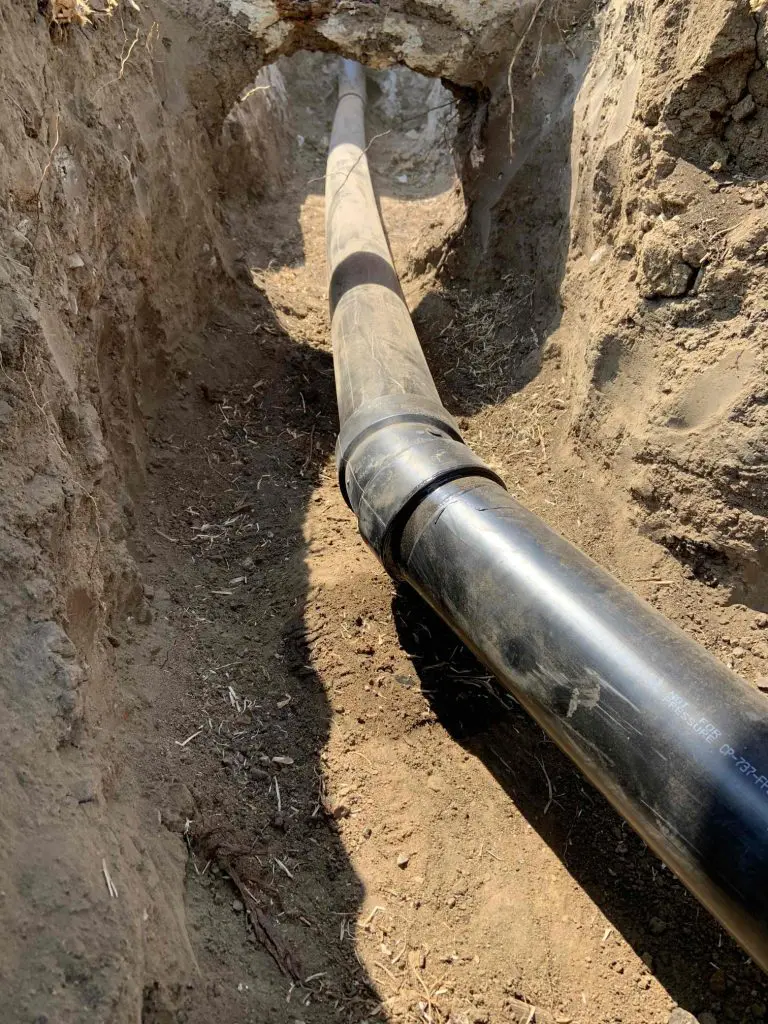

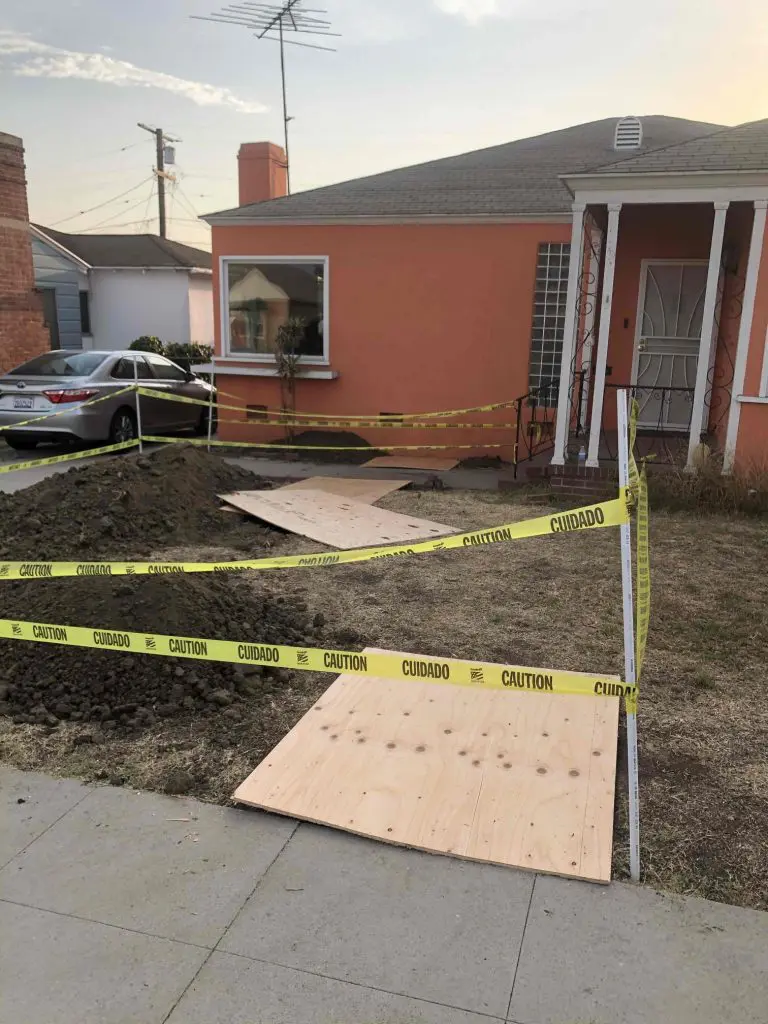

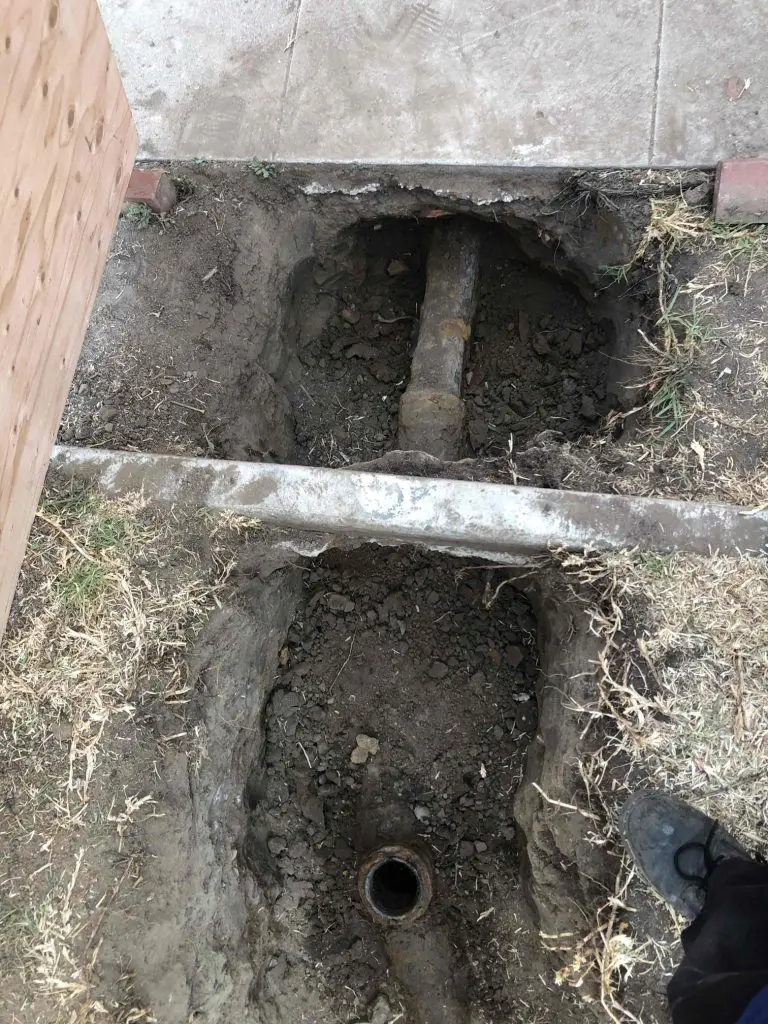

The front yard clay pipe had insufficient slope for a pipe burst — the old pipe's angle wouldn't allow the bursting head to track properly. We trenched the 35-foot run, excavated the old clay line, and installed new ABS pipe with correct slope throughout.
Install a new cleanout at the front of the home

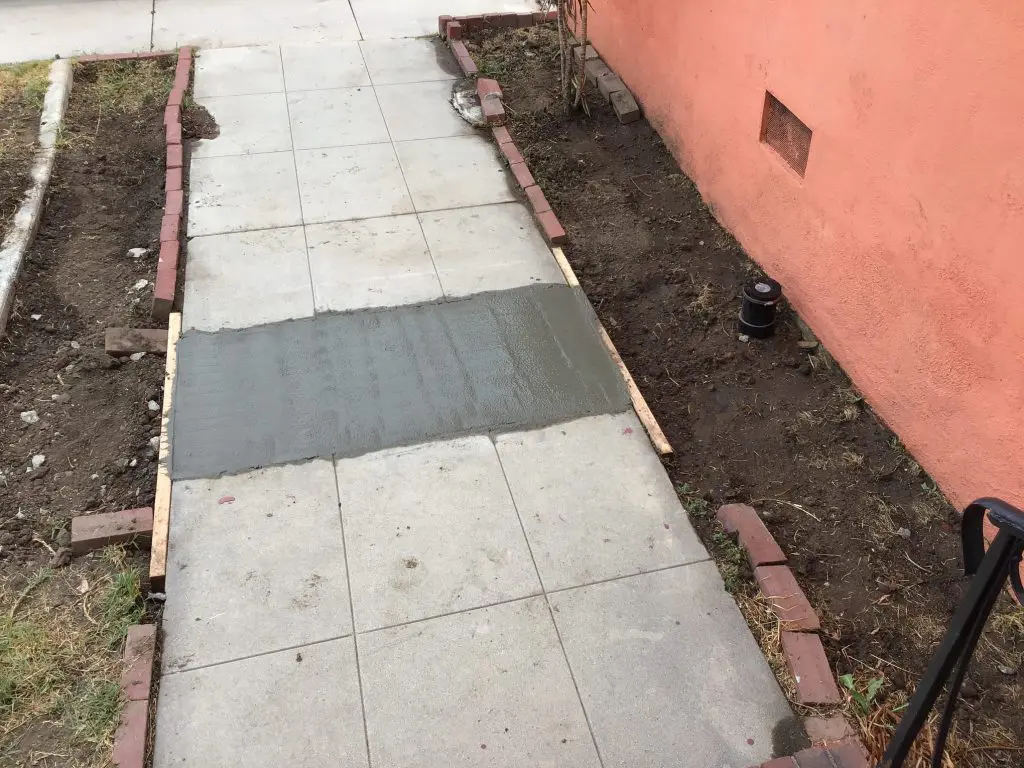

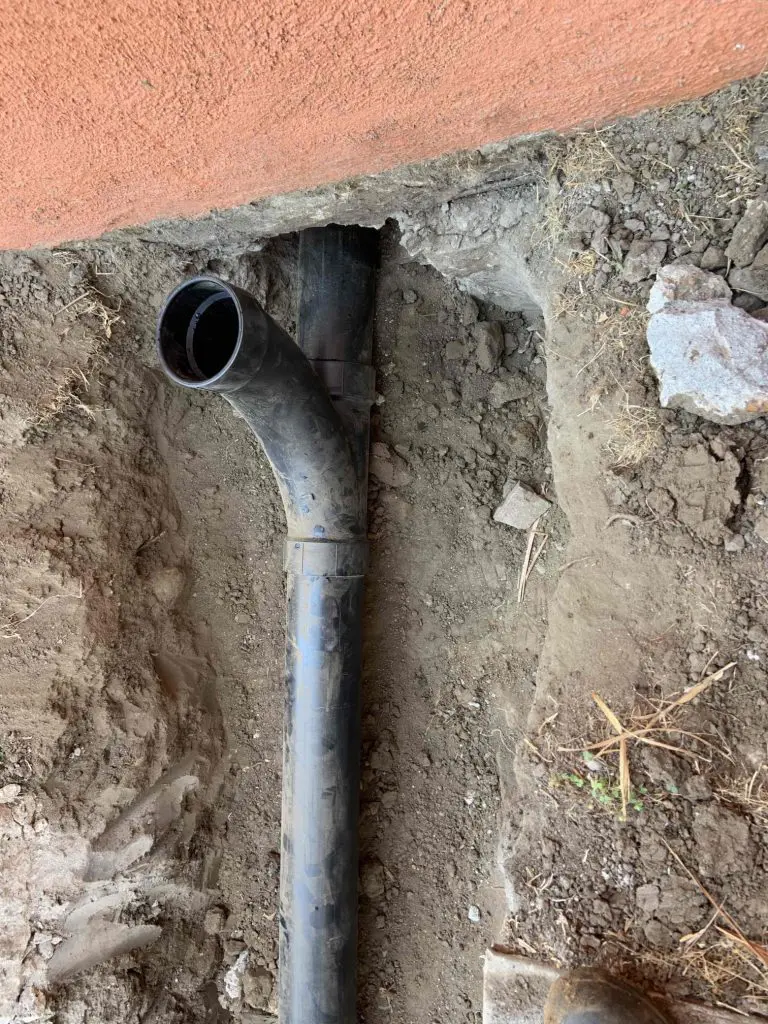

A new cleanout was installed at the front of the home where the new ABS transitions toward the street. This provides permanent maintenance access to both the new ABS run and the lined section, without excavation, for the life of the system.
Line the remaining clay toward the street connection
The clay pipe running from the new cleanout toward the city connection was in sufficient structural condition to accept a liner. We installed a cured-in-place liner through this section, sealing joints, eliminating future root entry points, and leaving a smooth interior surface. Camera-verified end to end after cure.
What This Job Required
Foundation Pipe Replacement
Access cut outside the foundation to remove 15 feet of failing cast iron and install new ABS main under the slab.
Camera Line Inspection
Full-run camera inspection to confirm pipe condition, slope, and correct method across all three segments before any work began.

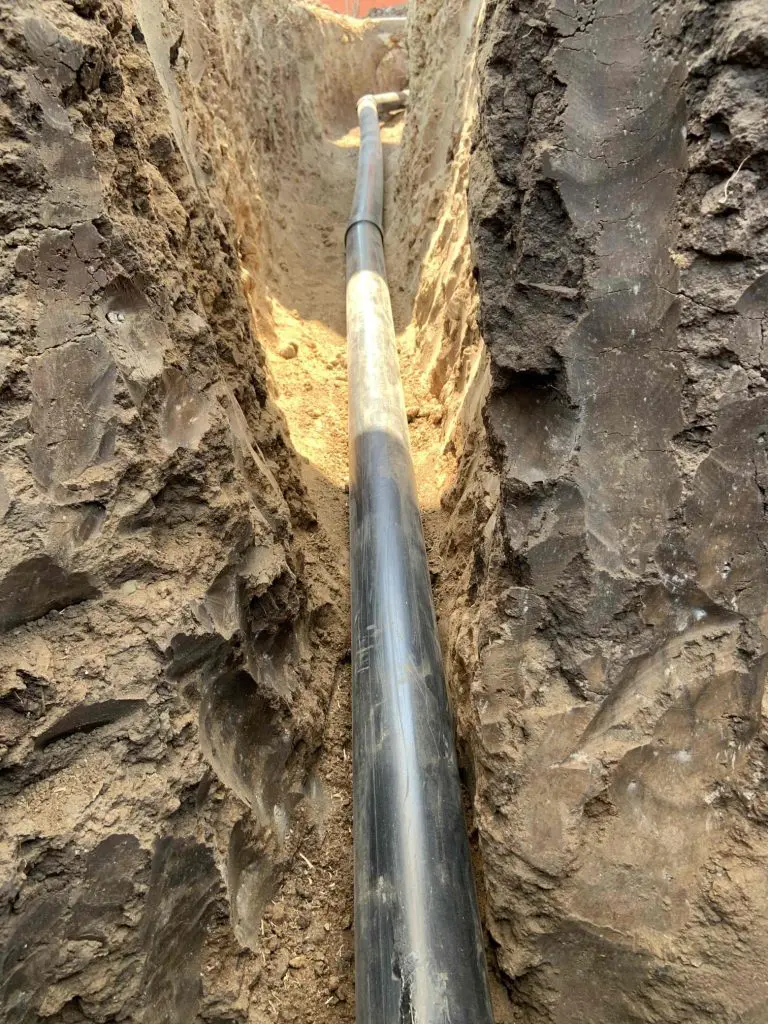

Clay Pipe Trenching & ABS Install
35-foot front yard trench, old clay pipe removed, new ABS pipe installed with correct slope throughout the run.
Cleanout Installation
New cleanout installed at the front of the home at the ABS-to-liner transition, providing permanent maintenance access.
CIPP Trenchless Lining
Cured-in-place liner pulled through the street-side clay section, sealing joints and eliminating root entry without excavation.
Post-Repair Camera Verification
End-to-end camera run after liner cure to confirm seal quality, slope, and connection at the city side before backfill.
Why Sewer Line Problems Are Common in Windsor Hills
Windsor Hills was built out primarily in the 1950s and 1960s — which means most of the original sewer laterals are cast iron or clay pipe now 60–70 years old. Both materials have a finite service life, and both fail in similar ways: cast iron corrodes from the inside out and develops pinhole leaks and cracked sections; clay pipe joints separate under soil movement and become prime targets for tree root intrusion.
The other complication in Windsor Hills is topography. The neighborhood sits on rolling hillside terrain, which means sewer lines often have inconsistent slope — a line that was correctly graded at installation can shift over decades of soil movement. When slope is insufficient, pipe burst isn't always an option — which is exactly what we found on this job. Trenching was the right call for the front yard, and the camera confirmed it before we started digging.
- Licensed, bonded, and insured — protecting your property throughout
- iPad-based invoicing with photos and video on every job
- Camera inspection before any repair recommendation
- Upfront written estimate — no work starts until you approve
- Warranty-backed repairs on parts and labor
Don’t Just Take Our Word For It
Sewer Line Repair — Windsor Hills FAQs
Why did my sewer line need three different repair methods?
Different pipe segments fail in different ways, and the right repair method depends on the pipe material, its condition, and its slope. On this job the under-slab cast iron required access and direct replacement, the front yard clay had insufficient slope for pipe burst so it had to be trenched, and the street-side clay was in good enough structural condition to accept a CIPP liner. Camera inspection before any repair is what determines the right method — guessing wastes money.
Why couldn't pipe burst be used for the front yard clay pipe?
Pipe bursting requires the existing pipe to have adequate slope so the bursting head tracks correctly through the line. The front yard clay pipe in this Windsor Hills home had insufficient slope — likely the result of decades of soil movement on hillside terrain. In cases like this, trenching is the correct approach: it gives us full control over slope and pipe placement, and the result is a properly graded, properly bedded new line.
What is a CIPP liner and how long does it last?
CIPP stands for cured-in-place pipe. A felt liner saturated with resin is pulled through the existing host pipe and inflated against the pipe wall, where it cures into a smooth, rigid new pipe inside the old one. It seals joints, eliminates root entry points, and creates a continuous interior surface — no more catch points for debris or roots. A properly installed CIPP liner is a long-term structural repair, not a patch.
Do I need a permit for sewer line work in Windsor Hills?
Windsor Hills is an unincorporated community in Los Angeles County, so sewer work falls under LA County Department of Public Works permitting — as well as city of LA requirements where work extends into the public right-of-way. Team Rooter handles all permitting in-house for sewer repair and replacement, including coordination with county inspectors and final sign-off.
How do I know if my sewer line needs repair or full replacement?
The only way to know is a camera inspection. Common signs you have a problem include recurring backups, slow drains throughout the home, gurgling toilets, sewer odors in the yard, or soft wet spots in the lawn. Camera inspection shows the exact condition of every inch of pipe — cracks, root intrusion, offset joints, corrosion, and slope issues — before any repair is proposed. Call (800) 818-2397 to schedule.
